Box Levels
BIG RED
Characteristics
Material
Aluminum
Measuring tolerance, standard position
0.0003 in./in. (0.3 mm/m, 0.017°)
Measuring tolerance, inverted measurement
0.0005 in/in. (0.50 mm/m, 0.029°)
Optional accessories
Features BIG RED
- Better, faster, and more accurate reading through the patented SOLA FOCUS vials
- Break-resistant acrylic block vials with a magnifying lens (+60%) and a Limited Lifetime Warranty
- Improved readability in dim light thanks to optimized SOLA luminous backing
- Highest measuring accuracy in standard and inverted position
- Extra-strong aluminum profile with reinforcing ribs for maximum stability

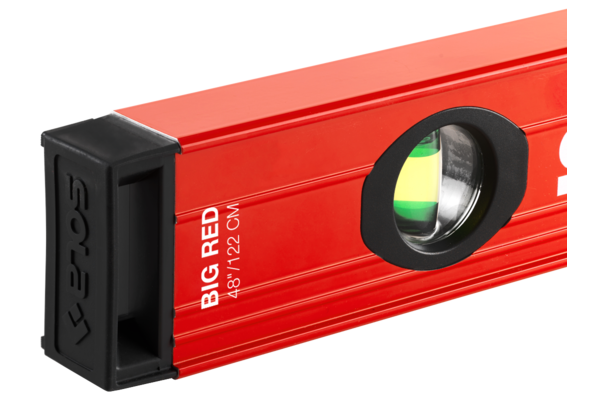

- Shock-absorbing 2-piece end caps provide optimum protection against damage
Applications BIG RED
- Horizontal measurement
- Vertical measurement
Technical details
| BIG RED | |
| Item description | Box profile spirit level |
| Dimensions | 2.32 in. x 1.06 in. (59 x 27 mm) |
| Material | Aluminum |
| Surface | coated |
| Color | red |
| Profile weight | 0.60 lb/ft (890 g/m) |
| Measuring tolerance, standard position | 0.0003 in./in. (0.3 mm/m, 0.017°) |
| Measuring tolerance, inverted measurement | 0.0005 in/in. (0.50 mm/m, 0.029°) |
| Number of horizontal vials | 1 |
| Number of vertical vials | 2 |

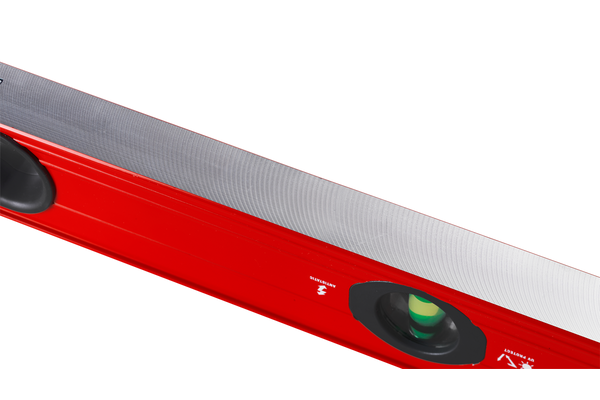

| Measuring surface | milled |
| Handles | 2 |
| End cap | 2-c |
Downloads
Manufacturer:
SOLA-Messwerkzeuge GmbH & Co KG
Unteres Tobel 25
6840 Götzis, Austria
+43 5523 533800-0
sola@sola.at, www.sola.at
Any warnings and safety instructions can be found in the User Manual or Safety Data Sheet in the “Downloads” section.
