Spirit level sets

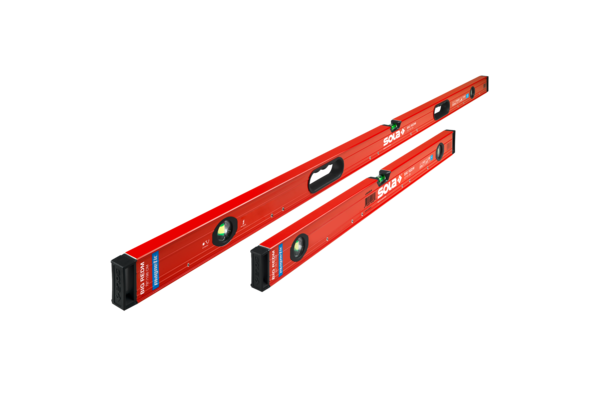

BIG REDM JAMB SET

Characteristics

Material Aluminum
Measuring tolerance, standard position 0.0003 in./in. (0.3 mm/m, 0.017°)
Measuring tolerance, inverted measurement 0.0005 in/in. (0.50 mm/m, 0.029°)
Magnet Neodymium
Model Length Number of magnets
BIG REDM 78"+32'' Jamb Set - LSB7832M 10 , 6

Optional accessories

Features BIG REDM JAMB SET

  • Set contains: BIG REDM 78"/32"
  • Lateral magnet installation for a seamless measuring surface and maximum protection of the magnet
  • Strong neodymium magnet for high adhesive force
  • Better, faster, and more accurate reading through the patented SOLA FOCUS vials
  • Break-resistant acrylic block vials with a magnifying lens (+60%) and a Limited Lifetime Warranty
  • Improved readability in dim light thanks to optimized SOLA luminous backing

Applications BIG REDM JAMB SET

  • Horizontal measurement
  • Vertical measurement
Technical details
BIG REDM JAMB SET
Item description Box profile spirit level
Dimensions 59 x 27 mm
Material Aluminum
Surface coated
Color red
Profile weight 0.60 lb/ft (890 g/m)
Measuring tolerance, standard position 0.0003 in./in. (0.3 mm/m, 0.017°)
Measuring tolerance, inverted measurement 0.0005 in/in. (0.50 mm/m, 0.029°)
Number of horizontal vials 1
Number of vertical vials 2
Measuring surface milled
Magnet Neodymium
End cap 2-c
Magnet Yes

Included accessory

  • BIG REDM 78"+32"
