Spirit level sets
X PRO SET
Characteristics
Material
Aluminum
Measuring tolerance, standard position
0.0005 in./in. (0.50 mm/m, 0.029°)
Measuring tolerance, inverted measurement
0.00075 in./in. (0.75 mm/m, 0.043°)
Optional accessories
Features X PRO SET

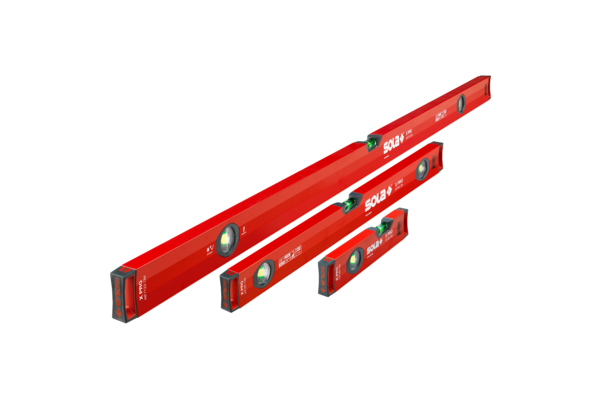

- Set contains: X PRO 48"+24"+10" (Pro Set) or X PRO 59"+32" (Tub + Shower Set)
- Better, faster, and more accurate reading through the patented SOLA FOCUS vials
- Break-resistant acrylic block vials with a magnifying lens (+60%) and a Limited Lifetime Warranty
- Improved readability in dim light thanks to optimized SOLA luminous backing
- Outstanding measuring accuracy in standard and inverted position
- Ergonomic, torsionally rigid aluminum profile for a long product life of precise measurement
Applications X PRO SET
- Horizontal measurement
- Vertical measurement
Technical details
| X PRO SET | |
| Item description | Box profile spirit level |
| Dimensions | 2.05 in. x 0.98 in. (52 x 25 mm) |
| Material | Aluminum |
| Surface | coated |
| Color | red |
| Profile weight | 0.42 lb/ft (630 g/m) |
| Measuring tolerance, standard position | 0.0005 in./in. (0.50 mm/m, 0.029°) |
| Measuring tolerance, inverted measurement | 0.00075 in./in. (0.75 mm/m, 0.043°) |
| Number of horizontal vials | 1 |
| Number of vertical vials | 1 |
| Measuring surface | coated |
| End cap | 2-c |
