Short tapes
PROTECT DS
Characteristics
Features PROTECT DS
- Measuring scale printed on both sides for maximum flexibility
- Dual end hook allows hooking in different positions
- Optimized protection thanks to durable nylon coating
- Secure handling thanks to a non-slip surface and ergonomic design
- Break-proof 2-piece plastic housing
- Long-lasting precision and protection against damage thanks to a reinforced initial tape section
| PROTECT DS | |
| Item description | Tape measure |
| Graduations | mm |
| EC accuracy class | II |
| Tape material | Steel |
| Tape surface | Nylon coated, yellow |
| End hook | Steel-coated, sliding |
| Tape brake | Brake, 1-piece |
| Rivets for end hooks | 4 |
| Reinforcement plate | Stainless steel |
| Housing material | ABS/TPE |
| Housing color | red/black |
| Belt clip | Stainless steel |
SOLA-Messwerkzeuge GmbH & Co KG
Unteres Tobel 25
6840 Götzis, Austria
+43 5523 533800-0
sola@sola.at, www.sola.at
Any warnings and safety instructions can be found in the User Manual or Safety Data Sheet in the “Downloads” section.
Nylon-coated tape measure with double-sided scale and dual end hook
The PROTECT DS tape measure combines innovative technology with maximum user-friendliness. Its double-sided measuring scale (horizontal on the front and vertical on the back) makes it possible to take exact measurements in any position. The dual end hook is particularly practical, enabling precise measurements of inner and outer dimensions.
Double-sided measuring scale for maximum flexibility
The double-sided measuring scale makes the tape measure particularly versatile. While the horizontal scale on the front is ideal for measuring along areas and edges, the vertical scale on the back makes it easier to measure heights and vertical elements. The pronounced curvature of the tape makes marking on the back even more precise: the tape is easier to position, enabling more accurate readings. This makes measuring even easier and more precise – even when working overhead or in hard-to-reach places.
Dual end hook for every position

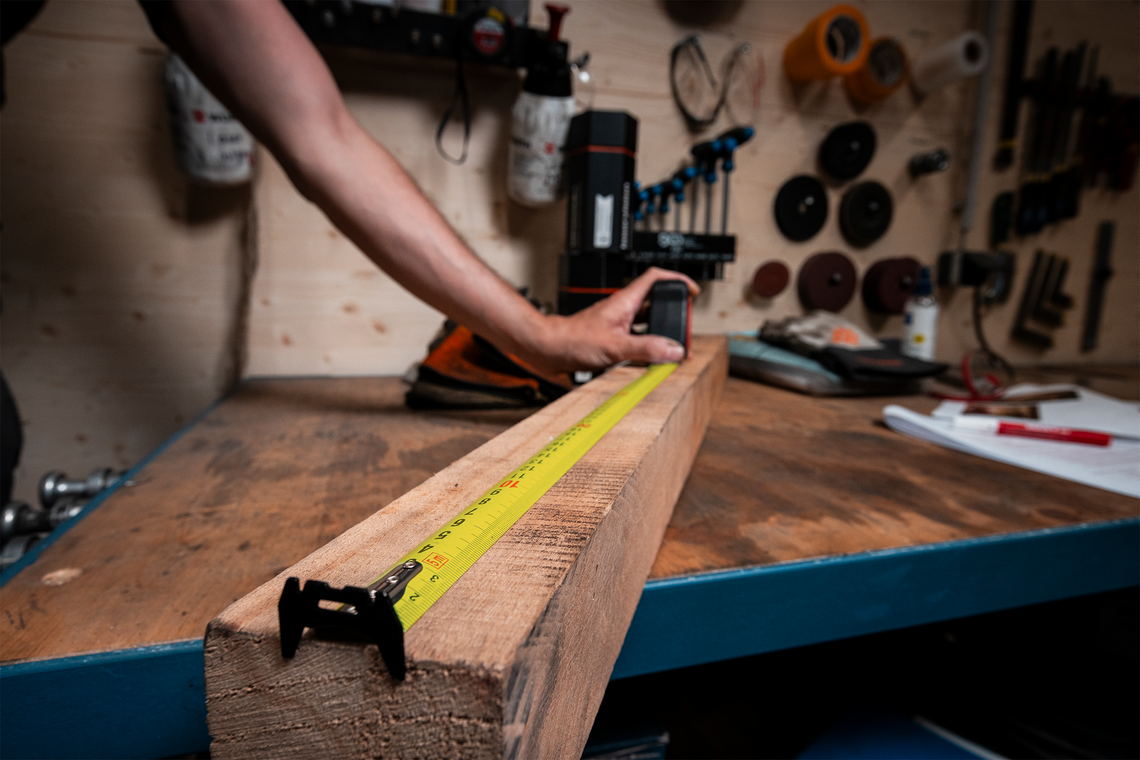

The dual end hook of the PROTECT DS tape measure can be hooked on in two directions, which makes measuring along edges and areas considerably easier. In addition, the end hook can be moved (also known as sliding), enabling particularly precise measurements of inner and outer dimensions. The large, robust stop ensures that the tape measure stays firmly in position, ensuring that every measurement is carried out safely while remaining stable.
Optimized protection through nylon coating
The steel tape is provided with a hard-wearing nylon coating that protects it from abrasion, scratches and corrosion, thus extending the service life of the tape. Thanks to the matte surface, the scale remains glare-free and easy to read even in direct sunlight.
