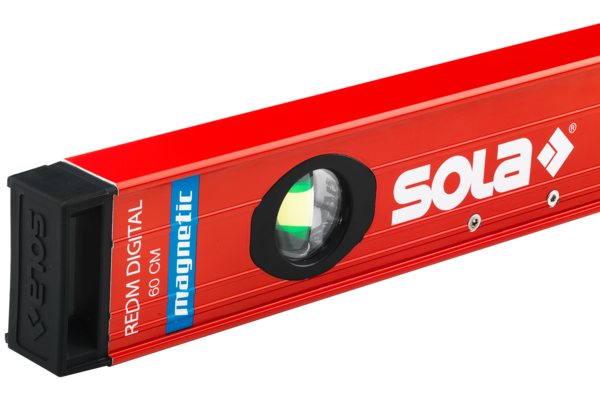

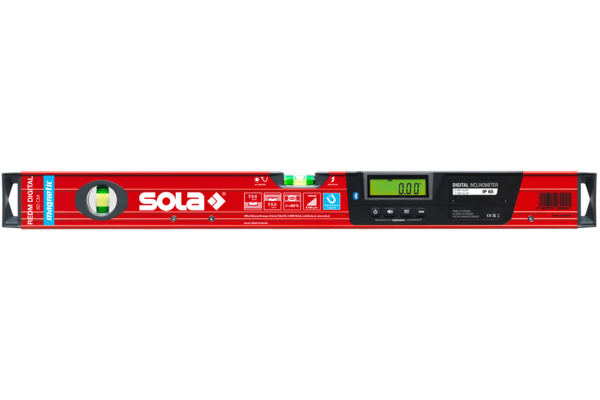

Digital level magnetic
Digital spirit levels
REDM DIGITAL
Characteristics
Material
Aluminum
Measuring tolerance, standard position
0.50 mm/m (0.029°)
Measuring tolerance, inverted measurement
0.50 mm/m (0.029°)
Magnet
Neodymium
Optional accessories
Features REDM DIGITAL
- Measuring tolerance Solatronic module:
0.05° at 0° and 90°
0.1° between 1° and 89° - Bluetooth interface for the SOLA Measures app
- Adjustable inclination display in °, %, mm/m, and in/ft
- Convenient reading thanks to reversible display for inverted measurements
- Lateral magnet installation for a seamless measuring surface and maximum protection of the magnet
- Strong neodymium magnet for high adhesive force
Applications REDM DIGITAL
- Horizontal measurement
- Vertical measurement
- Angle/inclination measurement
Technical details
| REDM DIGITAL | |
| Item description | Electronic incline spirit level |
| Dimensions | 59 x 27 mm |
| Protection class | IP65 |
| Power supply | 3 x 1.5 V (AAA) batteries |
| Material | Aluminum |
| Surface | coated |
| Color | red |
| Profile weight | 890 g/m |
| Measuring tolerance, standard position | 0.50 mm/m (0.029°) |
| Measuring tolerance, inverted measurement | 0.50 mm/m (0.029°) |
| Number of horizontal vials | 1 |
| Number of vertical vials | 1 |
| Special characteristic | Solatronic module with Bluetooth |
| Measuring surface | coated |
| Magnet | Neodymium |
| End cap | 2-c |
| Magnet | Yes |
Manufacturer:
SOLA-Messwerkzeuge GmbH & Co KG
Unteres Tobel 25
6840 Götzis, Austria
+43 5523 533800-0
sola@sola.at, www.sola.at
Any warnings and safety instructions can be found in the User Manual or Safety Data Sheet in the “Downloads” section.
