Line lasers
X2 GREEN
Characteristics
Features X2 GREEN
- High accuracy
- Compact, lightweight, handy
- Switchable inclination function
- Highly visible laser lines, individually switchable
- Permanent pulse function enables use of the optional REC LGD0 receiver in difficult visibility conditions
- REAL GREEN technology - Real. Improved. Visible.
Applications X2 GREEN
- Horizontal leveling
- Inclination manual
- Vertical leveling
| X2 GREEN | |
| Item description | Line lasers |
| Dimensions | 110 x 70 x 100 mm |
| Leveling | Self-leveling |
| Measuring tolerance | ±0.20 mm/m |
| Self-leveling range | ±3° |
| Application range without handheld receiver (radius) | 30 m* |
| Application range with handheld receiver (radius) | 80 m* |
| Operating temperature | -10°C to +50 °C |
| Tripod adapter | 1/4" |
| Protection class | IP54 |
| Power supply | 4 x 1.5 V (AA) batteries |
| Operating time (at 20 °C) | 8 hrs (all diodes) |
| Laser class | 2, DIN EN 60825-1 : 2014 |
| Output power | < 1.0 mW |
| Wavelength | 510 - 530 nm |
Included accessory
X2 GREEN. The green line laser for versatility and precision in interior construction.
HIGHLIGHTS
-
A horizontal line and a vertical line that can be switched on and off individually.
-
Large laser window enables long laser lines of up to 170° for versatile applications.
-
REAL GREEN: Real green diodes for particularly bright, sharp and clearly visible lines.
-
Self-leveling range of ±3° and measuring tolerance of ±0.20 mm/m for precise results.
-
Range up to 30 m without laser receiver, extendable up to 80 m with laser receiver.
-
Permanently enabled pulse function for use with the optional REC LGD0 laser receiver – ideal in difficult visibility conditions and at long distances.
-
Switchable tilt function for precise work on slopes.
-
Simple operation thanks to the ON/OFF switch and a single button.
Flexibility and precision

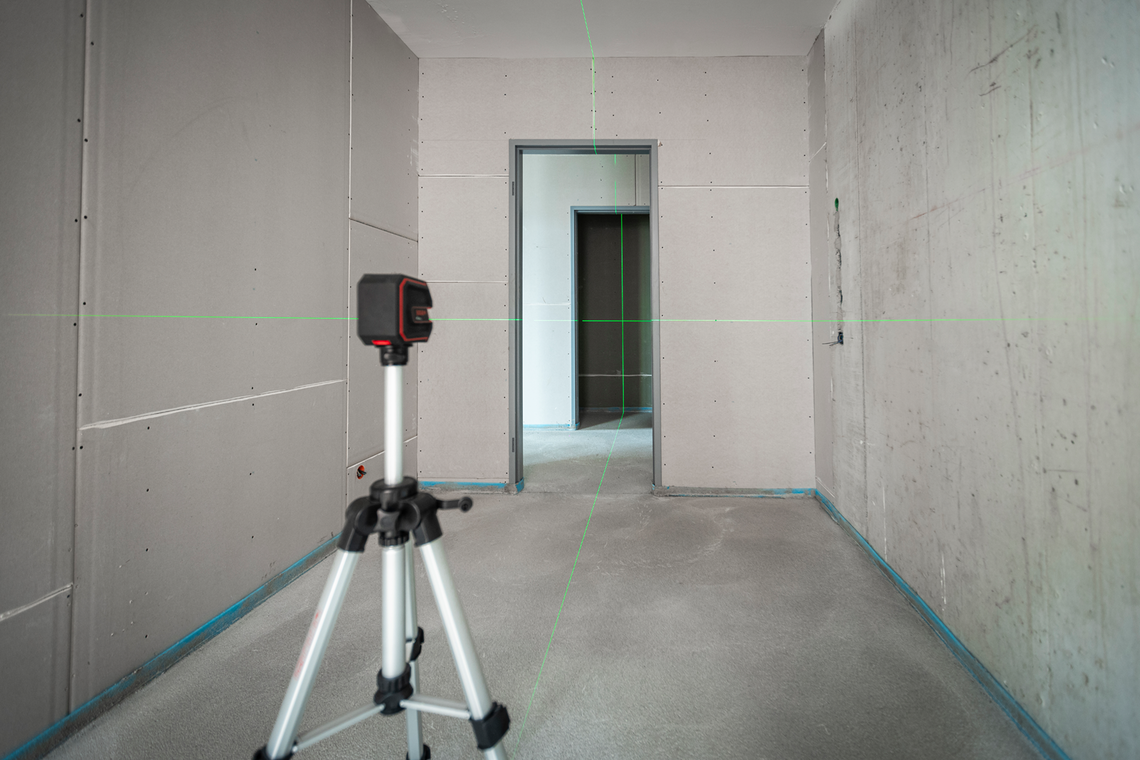

The X2 GREEN is a user-friendly green line laser, ideal for the precise horizontal and vertical alignment of objects. It offers a horizontal line and a vertical line that can be switched on and off individually at the touch of a button. The large laser window enables particularly long laser lines of up to 170° with a measurement tolerance of ±0.2 mm/m for precise work on floors, ceilings and walls.
High visibility
When switched on, the X2 GREEN immediately projects a laser cross at an exact 90° angle and automatically levels itself within a range of ±3°. Real green diodes produce particularly bright and high-contrast green laser lines, which improves visibility – ideal in low light conditions or over long distances.
Versatile application options
The X2 GREEN has a range of up to 30 m without a laser receiver. With the permanently enabled pulse function, the working range can be extended to up to 80 m by using a laser receiver. The switchable tilt function makes it possible to work at an angle, e.g. when installing stairs.
Areas of application

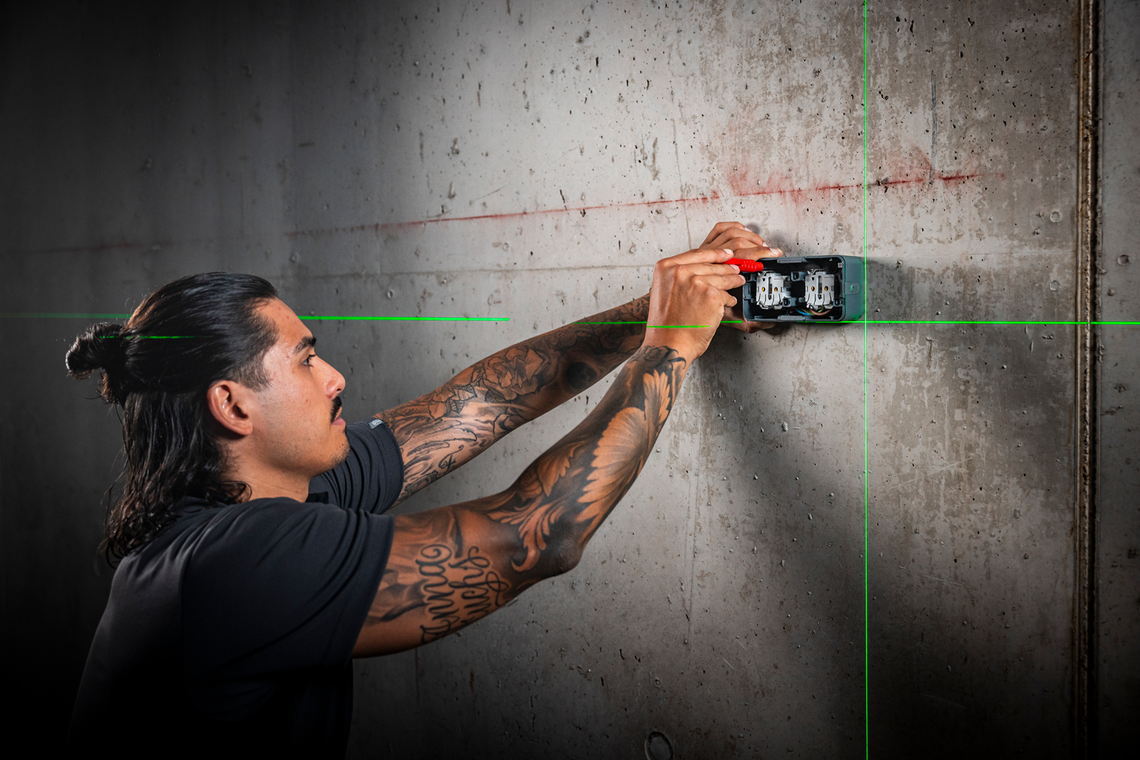

The X2 GREEN is particularly impressive in interior work thanks to its precise lines and versatile application options. It is ideal for aligning walls, sockets, light fittings and cable ducts, as well as for furniture assembly, tiling and staircase construction.
Available sets
The X2 GREEN is available in two practical sets that cover different requirements. The standard set contains the line laser, a protective bag and batteries. The X2 GREEN PROFESSIONAL set comes in a robust carrying case and also includes a magnetic wall mount (WB). The wall mount makes it easy to attach the X2 GREEN in hard-to-reach places, whether magnetically, by means of a clamp or hole mounting.
